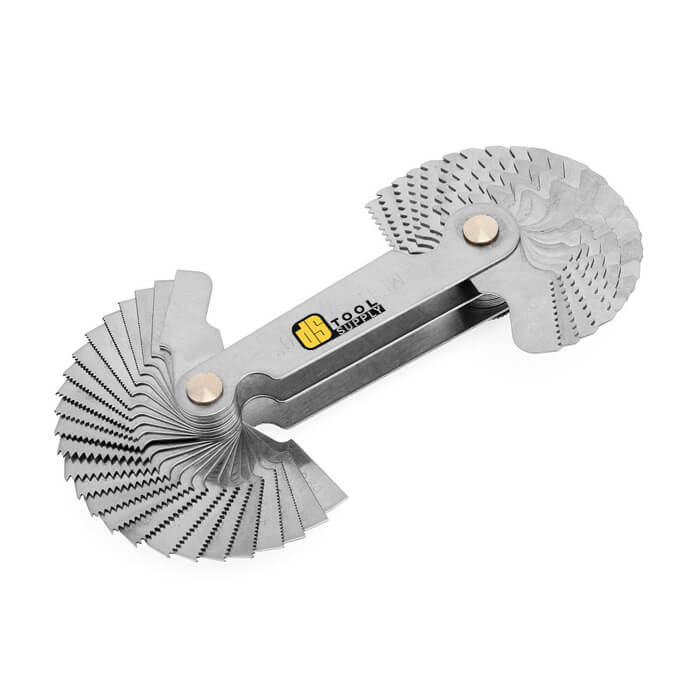

Screw Pitch Gauge
| Product Code |
Description | Range | No of Leaves |
Set Combination |
| 2801 | Whit-Worth-Thread 55° | 4-62 | 28 | 4-4.5-5-6-7-8-9-10-11-12-13-14-16-18-19-20-22-24-25-26-28-30-32-36-40-48-60-62 |
| 2802 | Metric-Thread 60° | 0.4-7.0 | 23 | 0.4-0.5-0.7-0.75-0.8-1.0-1.15-1.50-1.75-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0-6.5-7.0 |
| 2803 | Metric-Thread 60 | 0.25-6.0 | 24 | 0.25-0.30-0.35-0.40-0.45-0.50-0.60-0.70-0.75-0.80-0.90-1.0-1.25-1.50-1.75-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0 |
| 2804 | Whit-Worth-Pipe Thread 55° | 8-28 | 6 | 8-10-11-14-19-28 |
| 2805 | Whit-Worth-Metric | 4-62 & 0.4-7.0 | 48 | Whitworth SPMI-0658 & Metric SPMI-0659 |
| 2806 | Whit-Worth-Metric | 4-62 & 0.25-6.0 | 52 | Whitworth SPMI-0658 & Metric SPMI-0660 |
| 2807 | Whit-Worth-Pipe-Metric | 4-62 & 0.25-28 | 58 | Whitworth: 4-62Metric: 0.25-6 and 8–28 |
| 2808 | V-Thread | 4-42 | 31 | 4-4.5-5-5.5-6-7-8-9-10-11-11-5-12-13-14-15-16-18-20-22-24-26-27-28-30-32-34-36-38-40-42 |
| 2809 | US-Thread 60° | 10-40 | 14 | 10-11-12-13-14-15-18-20-24-27-28-32-36-40 |
| 2810 | US-Thread 60° | 4-64 | 22 | 4-4.5-5-6-7-8-9-10-11-12-13-14-16-18-20-22-24-32-40-48-56-64 |
| 2811 | UNF-Thread 60° | 12-80 | 18 | 12-14-16-18-20-24-28-32-36-40-44-48-56-64-72-80 |
| 2812 | US-Thread 60° | 4-84 | 46 | 4-4.5-5-5.5-6-7-8-9-10-11-11.5-12-13-14-15-16-17-18-20-22-24-25-27-28-30-32-34-36-38-40-42-44-46-48-50-52-54-56-58-60-62-64-66-68-70-72-74-76-78-80-82-84 |
| 2813 | Metric-ISO 60° | 0.5.6.0 | 22 | 5-0.6-0.7-0.75-0.8-1.0-1.25-1.5-1.75-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0 |
| 2814 | Whit Worth, Metric, ISO | 4-62 & 0.5-6.0 | 46 | |
| 2815 | Whit-Worth-Thread 55° | 4-60 | 26 | 4-4.5-5-6-7-8-9-10-11-12-13-14-16-18-19-20-22-24-25-26-28-30-32-36-40-48-60 |
| 2816 | Metric-ISO 60° | 0.5-7.0 | 17 | 5-0.6-0.7-0.75-0.8-1.0-1.25-1.5-1.75-2.0-2.5-3.0-3.5-4.0-4.5-5.0-6.0-7.0 |
| 2817 | British Association | 0-10 | 11 | 0-1-2-3-4-5-6-7-8-9-10 |
| 2818 | Metric-ISO 60° | 0.25-2.5 | 28 | 0.25-0.3-0.35-0.4-0.45-0.5-0.55-0.6-0.65-0.7-0.75-0.8-0.85-0.9-1.0 -1.1-1.2-1.25-1.3-1.4-1.5-1.6-1.7-1.75-1.8-1.9-2.0-2.5 |
| 2819 | V-thread US Metric 60° | 4-42 & 0.25-6.0 | 55 | V Thread |
