V Blocks & sets

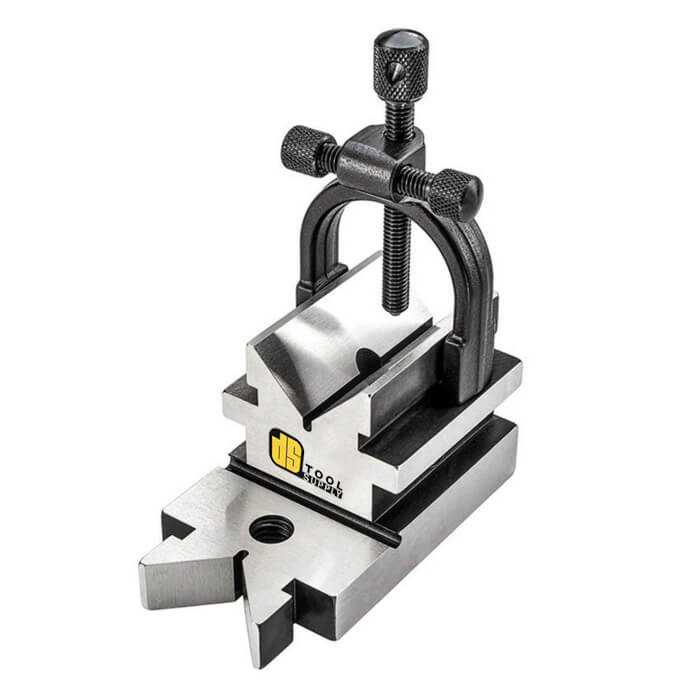

Toolmaker’s Precision V Block
This V Block is made of hardened and precision ground tool steel. All sides are parallel and vee is central and ground.
- Central hole is provided for drilling or removing pins.
- Clamp is smaller than outside width of the vee block and has adjustable side screw for support.
- Vee block has four 3/8″ tapped holes, two in the base and one each side for clamping.
- Block is provided with black oxidized clamp.
Dimensions
- Length – 92mm x Width – 48mm x Height – 48mm
- Clamping hole – 8.5mm
- Holding capacity – 33mm
